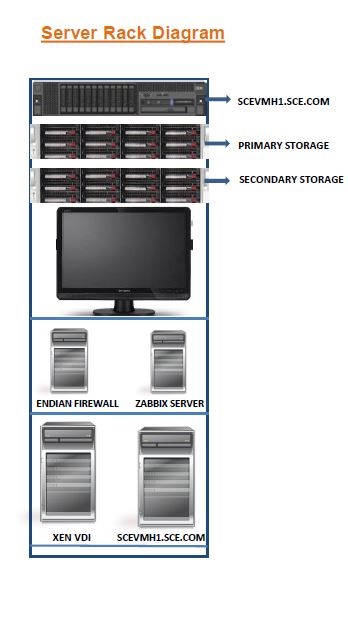

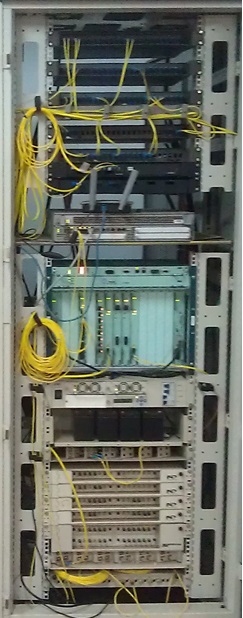

Server Room Rack

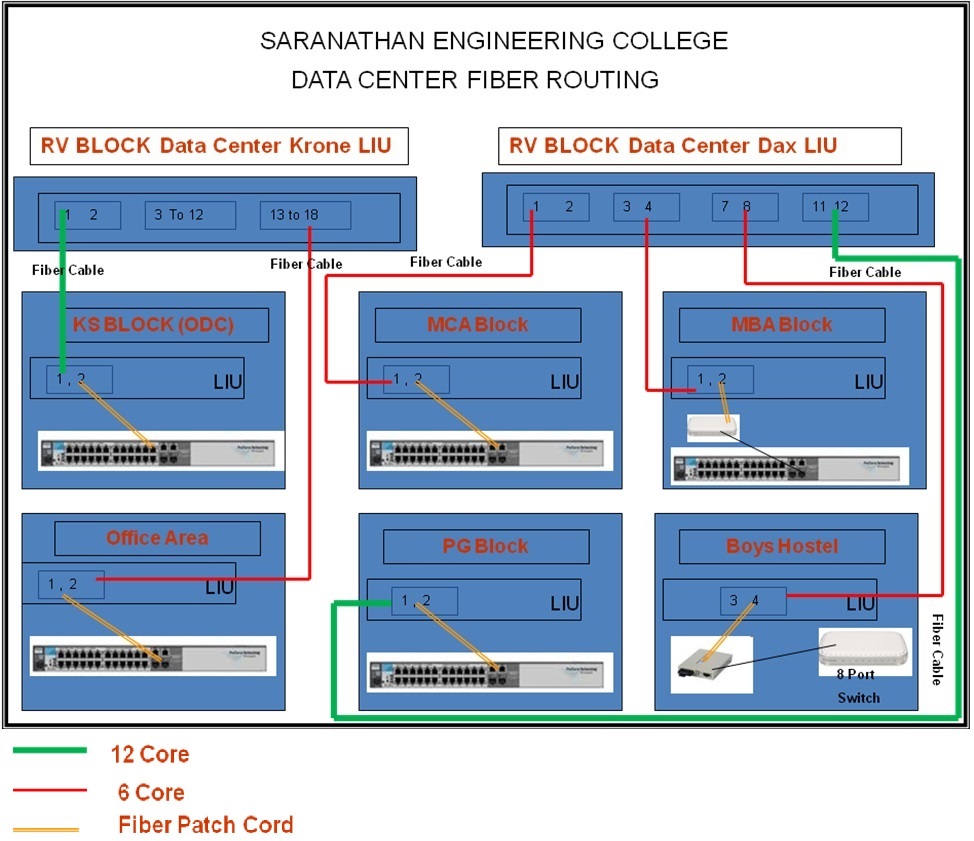

LAN has been designed with a Full-duplex Gigabit Ethernet backbone offering an aggregate bandwidth of 10 Gbps between different Switches using Single mode fiber. All the switches are linked through OFC


DATA CENTER Configuration (24 Hours Support)

  1.  IBM X3650 M3 Rack Server, Inter Xenon 2.4 GHz , 12 MB Cache , 24 GB DDR3 Ram 1333 MHz
  2.  IBM X3500 M2 server , Intel Quad Core Xenon Dual processor 2GHz, 20 GB DDR3 Ram
  3.  HP ProLiant ML 350 G6 Server, Intel Xenon Dual Processor E5620 2.4 GHz, 16 GB Ram (Redundant Server)
  4.  AMI Storage I - 10 TB , AMI Storage II - 10 TB (Redundant)
  5.  Emerson S400 D 2 nos 10 KVA UPS installed in hot standby mode and supported by 6 hours battery backup

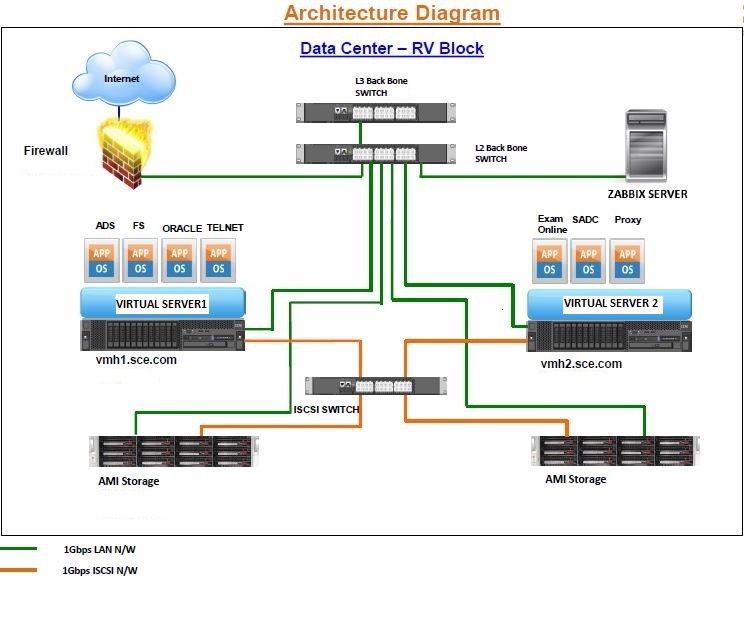

Virtual Server

  1. Domain Server
  2. DHCP Server
  3. Oracle Server
  4. K7 Endpoint Security- Antivirus
  5. File Server
  6. Telnet Server
  7. Moodle Server
  8. Firewall - Endian Firewall 2.5
  9. Zabbix Server - Server, Switch and UPS Monitoring
  10. Proxy Server - Squid
Data center room is monitored by surveillance camera and access to data center room is authorized by biometric door locks

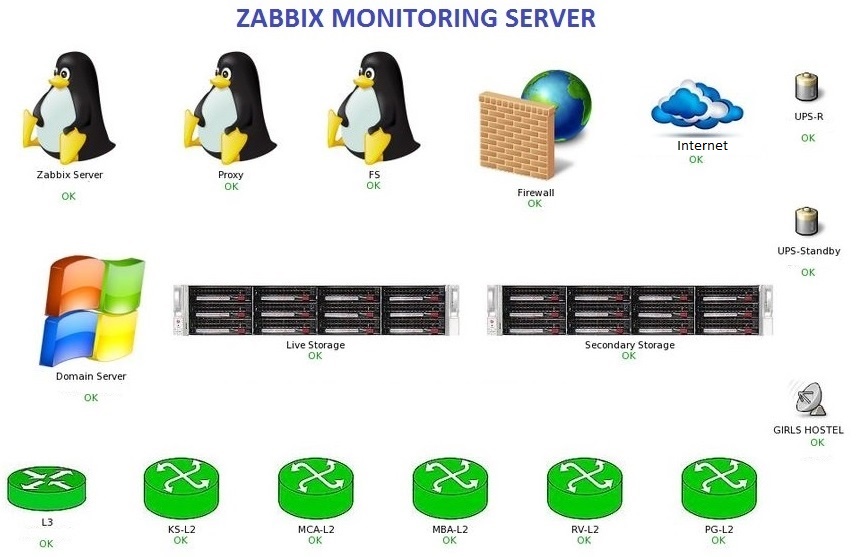

Zabbix Server

  • It is enterprise-class open source software for monitoring of networks and applications.
  • To monitor and track the status of various network services, servers, and other network hardware.
  • Service status tracked by using SMS Modem and indications of working status shown as 'OK' otherwise it shows 'problem found'.


Endian Firewall - It supports various protocols (HTTP, FTP, POP3, SMTP) Internet Security Content Filter, Intrusion Detection and Prevention Solution.

Proxy Server - in the Squid 2.3 using squidguard.org to block unwanted sites it is automated. Students accessing websites are monitored by using Sarg tool
